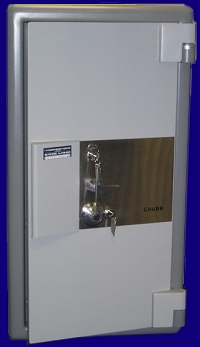

Chubb Safes TDR Range

At the time of its manufacture, the Chubb Torch and Drill Resisting (TDR) range of safes were at the cutting edge of the safe industry.

A result of some 150 years of experience and development, along with a careful study of burglaries throughout the world. The TDR range offered protection against all known forms of attack.
Even by todays standards, the TDR is a formidable adversary to any would-be thief.

The door is 190mm thick overall. Rectangular, it is constructed from outer and inner steel plates continuously welded to form a single structure and enclosing a solid layer of Chubb Torch and Drill Resisting Material to produce a total metal thickness of 76mm.
This material offers great resistance to oxygen cutting apparatus, as well as drills and forcing tools.
A hinged chamber containing special Chubb fire-resisting material is fitted to the back of the door.
The door is hung on hardened steel pivots with hinges of modern design.

The single unit outer steel body, encloses a 51mm monolith of Chubb's Torch and Drill Resisting Material, producing a safe body of great strength. The total solid metal thickness forming the body of the safe is 68mm.

The lockcase, an integral part of the door, is fitted on all four sides with sliding bolts, which engage directly into the boltholes made in the formed body of the safe. The number of sliding bolts in the safe varies according to size but is never less than three each at the back and front, rising to a maximum of six each back and front, with one top and one bottom.

Locking is by way of a 7-lever Chubb keylock with detachable bitted stainless steel keys or, a Chubb 4-wheel keyless combination lock.
The TDR safe is fitted with active re-locking devices, which protect the safe against an explosive attack on the lock. Subsequent to the door being locked, the re-locking device is automatically on guard.

The models are:

1st Strength -        overnight cash rating      - £15,000
2nd Strength -       overnight cash rating      - £20,000
3rd Strength -        overnight cash rating      - £40,000

To learn more about cash ratings, click here......

All refurbished safes leave our warehouse fully overhauled. They will have been completely stripped down, the locks and all re-locking devices serviced. Any worn parts within the safe or outside will have been replaced and the safe sanded back to the metal and re-painted. The standard colours we use are two shades of grey. A light grey, almost white, on the door, while the body is painted slightley darker.

Other colours are available at the customers request.

To read more of the process a refurbished safe will go through, please click here.....

As with all refurbished units, this safe is available subject to it being in stock.
