SMP Community SafeSMP Safes

SMP Community Cash Safe Euro Grades II / III / IV / V



The Community range of safes have been designed to meet the stringent requirements of European Safe testing as outlined in LPS 1183 Issue 4, tested and certified by the LPCB.

Grades II & III carry a 60 minute BS475 fire test certificate.



Cash Rating

Minimum Overnight Cash Cover:
Grade II - £17,500
Grade III - £35,000
Grade IV - £60,000
Grade V - £100,000

To learn more about cash ratings, click here......

NB: Insurance ratings should be verified by your insurance company.

TESTING: Certified by the LPCB to testing standards as outlined in LPS 1183 Issue 4.

QUALITY MANUFACTURE: Manufactured under a BS EN ISO 9002 System.

BODY: Constructed from jointless barrier materials encapsulated in an outer and inner steel body for greater protection against attack.

FIRE PROTECTION: Grades II & III - Affords 60P Fire Rating for added protection - Tested to BS475 Part 20.

BOLTWORK: Four way engagement, with 32mm diameter moving bolts extending from 3 sides of the door and rear dog bolts that engage securely into the body. The 3-way moving boltwork provides smooth operation and effective defence against attacks.

COMBOGUARD: SMP's latest security feature and is standard on the Community Grade V.

RELOCKING DEVICE: Live re-locking mechanisms fitted as standard, offer protection against sophisticated attacks including the use of explosives.

LOCKS: Class 1 Keylock - as standard. A wide variety of electronic, time and time delay locks can be fitted on special request. Dual locking and combination locking also fitted when specified.

BASE FIXING: The SMP. Community Range are prepared for anchoring to the floor by means of a security fixing bolt.

FINISH: The Community range is finished in SMP Pearl with a White fascia. The escutcheon and combination locks are edged in a gold finish, very attractive.

Options:

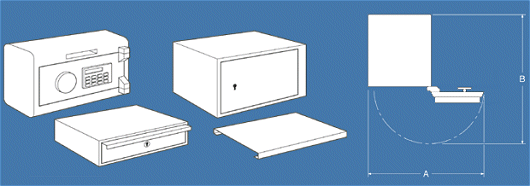

SMP Community Safe Optional Extras Diagram

ADJUSTABLE SHELVES - Adjustable shelves are available for all units. Heavy duty shelving is available on request, as an option.

TIME / TIME DELAY LOCKS - Time and Time Delay Locks, both mechanical and electronic can be fitted to all units. Some Electronic Locks such as the Lagard 33E can be linked into the Redcare or Alarm System via an Interface.

FULL WIDTH DRAWER - Lockable drawer with prepared positions for securing internally, 75mm high.

HALF WIDTH DRAWER - Lockable drawer with prepared positions for securing internally, 75mm high.

ANTI BANDIT COFFER - Designed to defeat on-site hold-up. Of robust construction, fitted with electronic locking and varied time delay settings. Fitted ex-works or retrofit.

LOCKABLE CUPBOARDS - Single or dual locking. Of robust construction, fitted into any position within the safe. Time delay control locks are available as optionals.

DEPOSIT SYSTEMS ROTATUBE - Angle Deposit Chutes, Drawer Type Traps, Rotunda Traps, Letter Slots.

The above options are available for all models, however there may be some restriction regarding sizes - please contact us for full details.


SMP Community Safe Grade II
Model141418142316291635205020
External Dimensions (mm)
Height53463576291510671448
Width534534585585686686
Depth (body)520520647647723723
Internal Dimensions (mm)
Height3574575857378891270
Width356356407407508508
Depth305305432432508508
Internal Volume (litres)3950103130230328
Nett Weight (kg)2883395215748381092
Total depth with door at 90° (mm)
Position A on diagram above
9559551055105512601260
Total width with door fully open (mm)
Position B on diagram above
9809801170117013501350

SMP Community Safe Grade III
Model181423162916352050206020
External Dimensions (mm)
Height635762915106714481702
Width534585585686686686
Depth (body)520647647723723723
Internal Dimensions (mm)
Height45758573788912701524
Width356407407508508508
Depth305432432508508508
Internal Volume (litres)50103130230328393
Nett Weight (kg)34052657984611011288
Total depth with door at 90° (mm)
Position A on diagram above
95510551055126012601260
Total width with door fully open (mm)
Position B on diagram above
98011701170135013501350

SMP Community Safe Grade IV & Grade V
ModelSize 0Size 1Size 2Size 3Size 4
External Dimensions (mm)
Height740840114014401740
Width740740740740740
Depth (body)720720720720720
Internal Dimensions (mm)
Height50060090012001500
Width500500500500500
Depth400400400400400
Internal Volume (litres)99120180240300
Nett Weight (kg)884972129116071917
Total depth with door at 90° (mm)
Position A on diagram above
13051305130513051305
Total width with door fully open (mm)
Position B on diagram above
13571357135713571357

Measurements and weights are supplied by the manufacturer. By virtue of The Trade Descriptions Act 1968, all must necessarily be considered to be approximate.
