SecureLine Security ProductsSecureLine Secure DIN

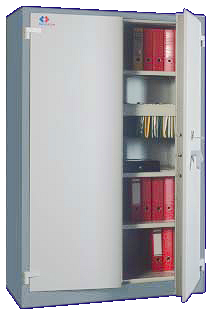

Secure Din - for fire protection of documents

What will happen with the company’s most vital documents if there is a fire? With Secure DIN they will be well protected from both heat and flames.

A lot of information like contracts, insurance documents and archives are of vital importance for every company. The Secure DIN helps to protect this important information during a fire and also offers effective protection against burglary.

Models

Secure DIN is an archive cabinet range available in four models, all designed to protect your documents with maximum capacity. The two larger models are available as double door versions.

Construction

Secure DIN has a double wall construction, insulated with fire-resistance material in accordance with DIN 4102. The traditional 3-way moving bolt-work (three horizontal and two vertical bolts) contributes to the overall security of the cabinet. Because of its limited weight, the Secure DIN can easily be placed in any user environment.

Locking

The cabinets are equipped as standard with a high security Mauer key lock (Class A, ECB•S / ENV 1300 approved) supplied with two keys. Provision is made to mount a second lock (key or electronic) for specific customer requirements.
Additional features
As standard the cabinets are configured with removable shelves, and for optimal utilization of space additional fittings are available. Lockable compartments, pull out frames for files or just extra shelves are options to customize your archive cabinet. All models are prepared for floor anchoring, to increase the protection of your documents.
Design
The Secure DIN cabinets will complement any office environment in colour, design and finish. They have a sophisticated modern look and are supplied in two-tone colour powder coated finish of light grey and dark grey.

To learn more about fire tests, click here......

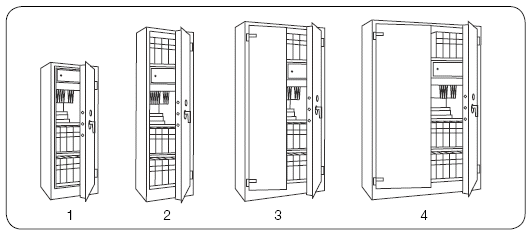

SecureLine Secure DIN Range Diagram
SecureLine Secure DIN
ModelDIN-Size 1DIN-Size 2DIN-Size 3DIN-Size 4
Dimensions (mm)
External Height1500195019501950
External Width7007009501260
External Depth550550550550
Internal Height1290178017801780
Internal Width5855858351145
Internal Depth430430430430
Internal Volume (litres)325450640880
Weight (kgs)95120150200
No. Shelf3444

SecureLine Secure DIN - Optional Fittings
ModelDIN-Size 1
DIN-Size 2
DIN-Size 3DIN-Size 4
ShelfSecure DIN Shelf Diagram
External Height (mm)303030
External Width (mm)5908401115
External Depth (mm)400400400
Pull out frame for filesSecure DIN Pull Out File Frame Diagram
External Height (mm)808080
External Width (mm)5608101115
External Depth (mm)330-350330-350330-350
Lockable compartmentSecure DIN Lockable Compartment Diagram
External Height (mm)420420420
External Width (mm)5608101115
External Depth (mm)400400400
Internal Height (mm)335335335
Internal Width (mm)5307801095
Internal Depth (mm)335335335


Measurements and weights are supplied by the manufacturer. By virtue of The Trade Descriptions Act 1968, all must necessarily be considered to be approximate.
