Rosengrens Polaris Data CabinetRosengrens Safes

Rosengrens Polaris

Rosengrens Polaris is the new generation data media cabinets, tested and certified to withstand a fire for 2 hours. Rosengrens Polaris offers a maximum capacity in the minimum of space with an extensive range of interior fittings which ensures that different sizes and types of media can be mixed and stored efficiently. The focus being on storage of CDs and DLT magnetic tapes.
The cabinets are available in 5 different sizes and are all equipped with a boltwork that gives a good burglary resistance.
Choose between key lock, combination lock or electronic lock. Dual locking is also possible.

To learn more about fire tests, click here......

FIRE PROTECTION: The Rosengrens Polaris series has been tested and approved to EN 1047-1 and certified by ECB S to the fire resistance of S 120 DIS, which means 2 hours fire protection. The range also holds an American UL certificate to the class 125 2 H with fire and impact, which means 2 hours fire protection.

LOCKS: Various lock options are available, Rosengrens key lock RKL-10,combination lock and electronic lock in different levels. All locks are tested and you can choose between single and dual locking. With the heavy locking bolt work the cabinets have a good burglary resistance.

DESIGN: The design is functional and elegant with a light colour scheme, built-in hinges and a functional handle with push and seal closure as standard. Thanks to the cabinets smaller external dimensions in relation to capacity the cabinets blend in well with most environments.

QUALITY: The Rosengrens Polaris series are all manufactured in accordance with the ISO 9001 quality management system and the ISO 14000 environmental management system.

QUALITY CONTROL: Rosengrens Polaris has been developed and continuosly tested according to the Gunnebo Quality Guidelines which include several criteria relating to existing European norms with the aim of guaranteeing quality and assuring customers that the products live up to the highest expectations.

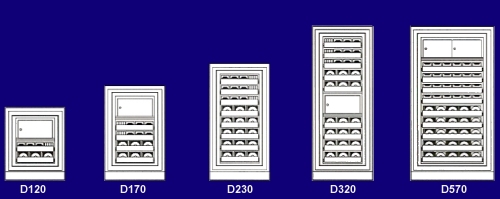

The Polaris Range


Rosengrens Polaris
Data and Dimensions (mm)
ModelExternal
  HWD
Internal
HWD
Weight
(kg)
Volume
(litres)
D120920750720570490400318115
D1701200750720850490400395171
D23014807507201130490400495227
D32019507507201580 (1600)490400645 (635)316 (321)
D570195010407701580 (1600)780460865 (840)577 (587)
Figures within ( ) are valid for D320 and D570 approved by UL to Class 125 2H. For remaining models the figures are the same for both certifications.
For all external dimensions, add another 61mm for handle projection.

Optional Internal Fittings

Fixed Shelf For D120 - D320

Fixed Shelf
For D120 - D320
Size 17 x 474 x 395mm
For D570
Size 17 x 764 x 445mm

Extensible Shelf For D120 - D320

Extensible Shelf
For D120 - D320
Size 70 x 440 x 374mm
For D570
Size 70 x 730 x 444mm

Extensible Flexible Shelf For D120 - D320

Extensible Flexible Shelf
For D120 - D320
Size 70 x 434 x 392mm
includes 2 dividers & 9 tilt supports
For D570
Size 70 x 724 x 452mm
includes 4 dividers & 15 tilt supports

Fixed Shelf combined with files For D120 - D320

Fixed Shelf combined with files
For D120 - D320
Size 26 x 474 x 380mm
For D570
26 x 764 x 445mm

Lockable Compartment For D120 - D320

Lockable Compartment
For D120 - D320
Size 254 x 440 x 325mm

Double Lockable Compartment For D570

Double Lockable Compartment
For D570
Size 254 x 440 x 325mm


Measurements and weights are supplied by the manufacturer. By virtue of The Trade Descriptions Act 1968, all must necessarily be considered to be approximate.
