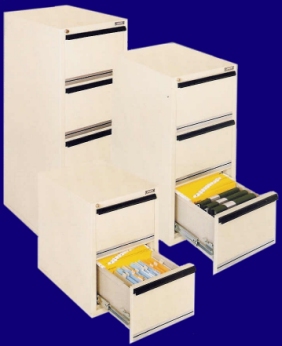

Hadak Vertical File Cabinets

Suspension files are becoming increasingly common for storing paper and documents and are gradually replacing conventional binders. They are widely regarded as being time saving.
Hadak Vertical Filing Cabinets are matched to the office enviroment in colour, design and dimensions.
A central key lock for all drawers is standard but the cabinets can also be equipped with individual key locks for every drawer or with a central combination lock.
The models are suitable for
cc 390mm folio and size A4 files. Interior fittings for the storage of binders and card indexes offer optimum utilization of the cabinet.

Add the special insert module and you will also have fire-resistant storage for your data media.
All three models are tested and certified by SINTEF, Norweigan fire research laboratory, fire class 120P. This means that documents stored in Hadak vertical cabinets are readable even after an intense fire lasting for 120 minutes.

To learn more about fire tests, click here......

Available in two, three or four drawer sizes and a variety of internal fittings to suit many types of document.


Data Media Insert DMV - F (216-0652)

Capacity: 344 x 5¼" or 381 x 3½" diskettes.
Fire class: 120D for data media when the insert is placed in a Hadak Vertical Filing Cabinet.

Internal Dimensions - mm (H x W x D): 170 x 285 x 490
External Dimensions - mm (H x W x D): 265 x 375 x 580


Bottom Insert BPV - F (216-0645)

Can hold up to 14 dividers. Suitable for storage of binders and standing folders.


Divider VSV - F (216-0601)

Pack of 5. To bottom insert BPV - F.


Basket VLV - F (216-0605)

For A5 cards. Each drawer in the vertical filing cabinet can hold 2 baskets.

Internal Dimensions - mm (H x W x D): 163 x 213 x 378
External Dimensions - mm (H x W x D: 165 x 217 x 382

In addition, there is also space for vertical or hanging storage.


Divider VSVA5 - F (216-0606)

Pack of 5. To basket VLV - F.
Each basket can hold up to 18 dividers.


Hadak Vertical Fire File Cabinets
Dimensions (mm)
ModelVF-2LVF-3LVF-4L
Number of Drawers234
External
Height72210511379
Width535535535
Depth720720720
Internal Drawer Dimensions
Height265265265
Width390390390
Depth584584584
Cabinet Capacity (litres)120180240
Approx. nett weight (kg)180240330
Suspension Files Storage, Folio or Size A4
Hanging folders (ca) per drawer125125125
Linear meter per drawer0,580,580,58
Total capacity of hanging folders (ca) per cabinet250375500
Available Optional Internal Fittings
Bottom Insert BPV - Fyesyesyes
Divider VSV - Fyesyesyes
Basket VLV - Fyesyesyes
Divider VSVA5 - Fyesyesyes
Data Media Insert DMV - Fyesyesyes

Measurements and weights are supplied by the manufacturer. By virtue of The Trade Descriptions Act 1968, all must necessarily be considered to be approximate.
