As part of the strategy to create the finest range of protection against fire and theft, Phoenix Safes introduce the Phoenix Millenium Duplex 4600 Safe. This safe provides absolute protection for your computer and magnetic data.
Peace of Mind
We know that fire strikes without warning! We also know there will be no warning over the theft or copying of confidential data or documentation. Overnight, a company's most expensive assets, research or developement could fall into the hands of unscrupulous competitors, with potentially catastrophic results. Thats why all 4600 series safes are fitted with an unpickable VDS Class 1 Keylock.
Stringent VDMA Testing
This safe also has the ability to exceed the world's most rigorous fire test, the VDMA 24991 Standard. This demands that, in a fire, the safe can resist the crushing pressures of a building collapsing upon it, explosion in the form of superheated gases, falling from a height of 10 metres through burning floors and a raging fire of 1100°C for 2 hours. If that seems hard enough, the internal temperature of the safe will not exceed a comfortable 52°C to keep all your data secure and intact.
Phoenix Millenium Duplex Optional Fittings
A complete range of optional sliding drawer units or shelves ensures that every combination of magnetic and computer media can be stored with maximum efficiency.
2 Hours fire protection at temperatures over 1100°C
High security unpickable double bitted VDS Class 1 Keylock for extra security
Complete range of optional sliding drawer units or shelves available

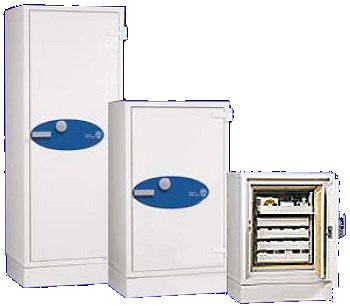

Phoenix Millenium Duplex 4600 Series
Model
4601
4602
4603
4604
Dimensions (mm)
External Height
1030
1380
2080
1780
External Width
780
780
780
1230
External Depth
620
620
620
740
Door Swing (mm)
745
745
745
1195
Internal Height
582
932
1632
1350
Internal Width
481
481
481
930
Internal Depth
325
325
325
415
Internal Volume (litres)
91
146
255
521
Weight (kgs)
340
455
660
850
Capacity Guide (based on average media sizes)
Media size (mm)
Media per shelf
Total number of media per safe
Model
4601/2/3
4604
4601
4602
4603
4604
Diskette 3½"
93 x 90 x 3.6
384
1090
1920
3072
5760
11990
DC2000
88 x 66 x 18
108
273
540
864
1620
3276
CD Rom/DVD
142 x 125 x 10
104
273
416
624
1144
2184
DAT
80 x 60 x 15
145
390
870
1450
2610
5070
SyQuest 3½"
99 x 98 x 10
136
351
680
1088
2040
3861
Zip Drive
100 x 100 x 12
110
288
550
880
1650
3168
Jaz Drive
135 x 135 x 20
48
114
192
288
528
912
Video 8
102 x 70 x 20
63
247
315
504
945
2717
DLT Cartridge
110 x 110 x 30
34
104
136
238
442
1040
Measurements and weights are supplied by the manufacturer. By virtue of The Trade Descriptions Act 1968, all must necessarily be considered to be approximate.
